Reduce blood loss with the OKAY® II Y-Connector
10Fr Inner Lumen Diameter:
Suitable for a variety of advanced multi-device techniques.
The hemostatic valve is easy-to-use with single hand operation.
Minimize Blood Loss:
Blood loss during procedure can be significantly reduced with the OKAY® II device compared with other products without the hemostatic valve. .

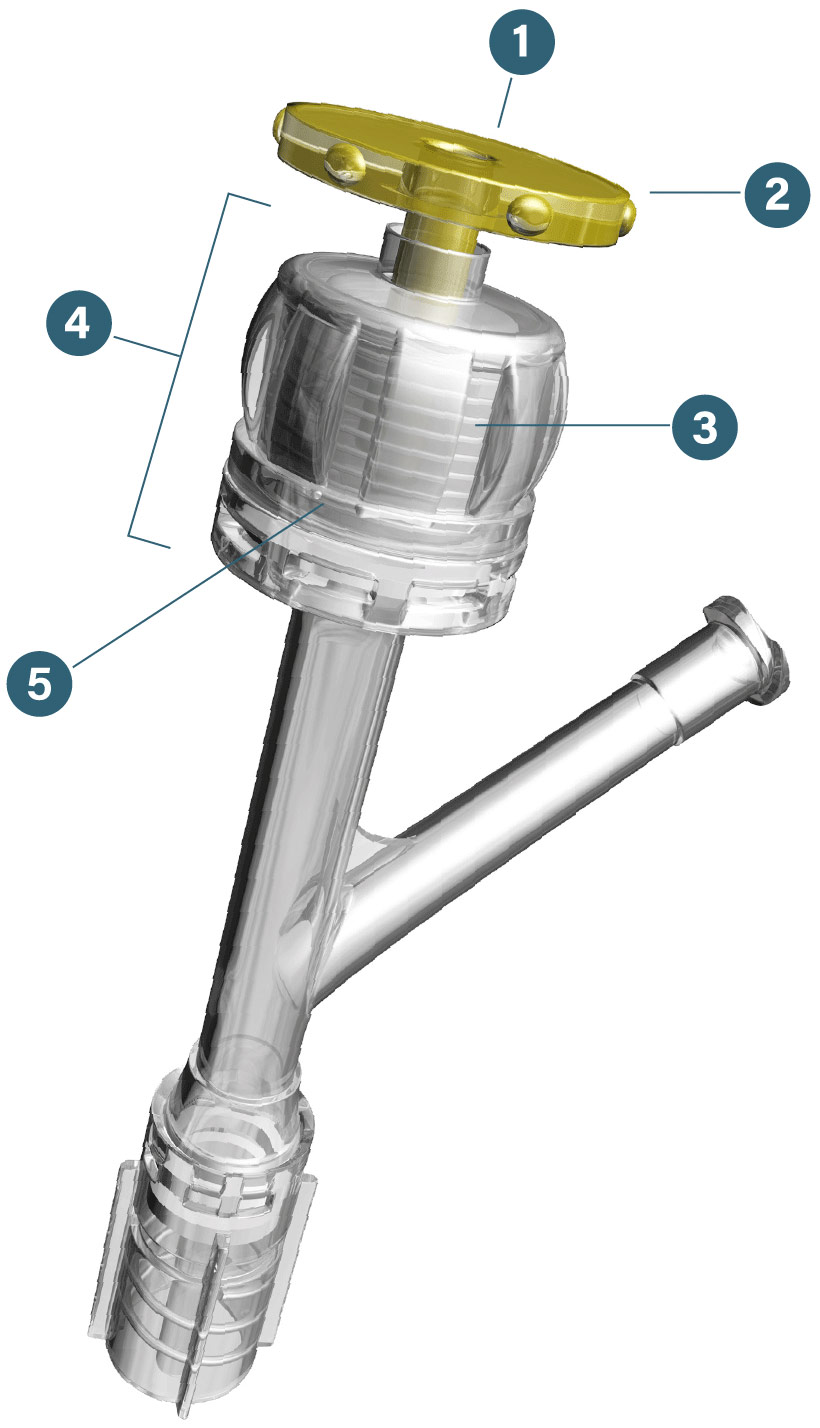

Hemostatic Valve with Convenient Lock-Open Feature:
Once the hemostatic valve has been opened, a 1/4 turn locks the valve in the open position.
The Fixed Valve:
The fixed valve on the OKAY® II device can be closed by turning the thumb wheel clockwise with a "1 revolution" motion. The fixed valve secures devices in place during contrast injection, ballooning, or stenting.
Prevent Loss of Pressure:
OKAY® II pressure resistance with fixed valve closed ≤500psi*
The OKAY® II is designed utilizing both a fixed and hemostatic valve. An inner lumen of 10Fr facilitates easy insertion and is suitable for a variety of interventional cardiology devices including the Kissing Balloon Technique (KBT), Stent, Rotablator™ (up to 2.5mm Burr), DCA and more.

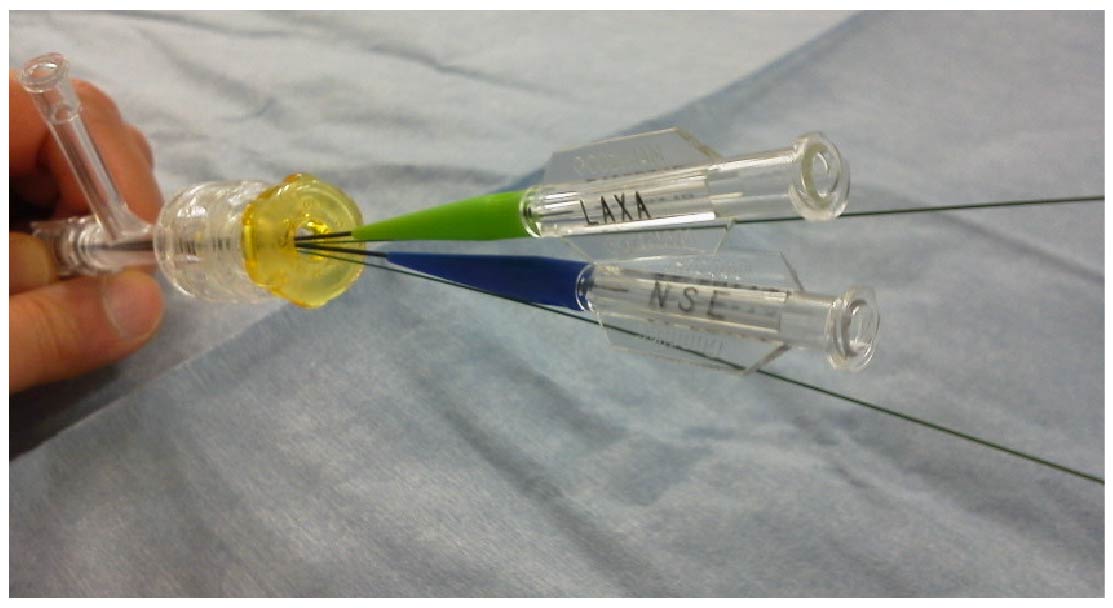

Balloons pictured illustrate the benefit of valve features and are not available for sale in the USA.
OKAY® II Y-Connector
10Fr Inner lumen
≤500psi, with fixed valve closed*
Compatible guidewire diameters: 0.010" – 0.018"
Inner diameter = 0.021” (max guidewire size: 0.018”)
22cm, pressure resistance: ≤500psi
*Measurements were obtained without any devices inserted. Use of devices (including multiple devices) may result in instances whereby 500psi is not achieved.
|Product Name||Product Reference||Contents||GTIN|
|OKAY® II Y-Connector Set||YOK0A||Y-Connector, Inserter, Torque Device (qty 5)||04543660022331|
|OKAY® II Y-Connector||YOK0B||Y-Connector (qty 5)||04543660022348|
|OKAY® II Y-Connector Set w Ext. Tube||YOK0E||Y-Connector, Inserter, Torque Device, Extention Tube (qty 5)||04543660022355|
|GM-30 Accessory Kit||GLGMN-YOK0A||A single box containing 1 sterile pouch with OKAY® II Y-Connector Set and 1 sterile pouch with a GM-30N Inflation Device.||04543660023508|
|GM-30 Accessory Kit||GLGMN-YOK0E||A single box containing 1 sterile pouch with OKAY® II Y-Connector Set w Ext. Tube and 1 sterile pouch with a GM-30N Inflation Device.||04543660023515|
|GM-30 Accessory Kit||GLGMF-YOK0A||A single box containing 1 sterile pouch with OKAY® II Y-Connector Set and 1 sterile pouch with a GM-30NF Inflation Device.||04543660023485|
|GM-30 Accessory Kit||GLGMF-YOK0E||A single box containing 1 sterile pouch with OKAY® II Y-Connector Set w Ext. Tube and 1 sterile pouch with a GM-30NF Inflation Device.||04543660023492|
